WHELEN 90340 SERIES STROBE ANTI-COLLISION / LED POSITION LIGHT ASSEMBLY

35 925 ₽

Описание

90340 series is an all inclusive wing tip mounted strobe anti-collision/position light assembly utilizing LED's for both the forward & tail position lights, eliminating the need for a tail mounted position light. The LED's provide a significant reduction in current draw over conventional position light bulbs. The strobe light lens assembly is radio shielded for maximum EMI/RFI protection. Direct replacement (exact footprint) for the Whelen Model A600PG/PR series without replacing the current strobe power supply. Single set of flying leads operates both forward & tail nav on 28 VDC version, and one set each of flying leads for the forward & tail nav on the 14 VDC version.

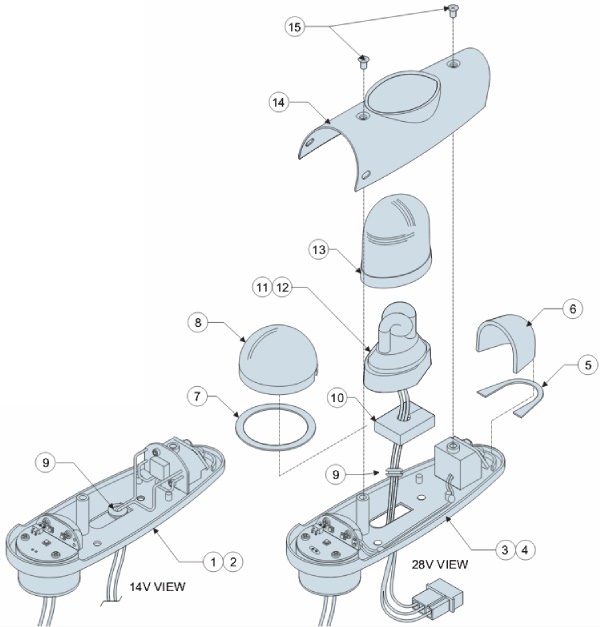

Item	Whelen #	Description	Color	Volt
1	01-0271789-01	Assembly, Anti-Collision/Position Light	Green	14
2	01-0271789-02	Assembly, Anti-Collision/Position Light	Red	14
3	01-0271789-03	Assembly, Anti-Collision/Position Light	Green	28
4	01-0271789-04	Assembly, Anti-Collision/Position Light	Red	28
5	38-0250901-00	Gasket, Tail Position Light Model 90340
6	68-3950903A30	Lens, Clear Tail Position Light Hard-coat
7	38-0230021-01	Gasket, Position Light Split
8	68-3950902A30	Lens, Clear Forward Position Light
9	21-11061209-0	Grommet, 3/16ID 1/2OD 9/32 THK
10	38-0130878-01	Gasket, Flashtube, A600 (.375)
11	36-0050626-01	Assembly, Flashtube 6.00 Leads with Grommet
12	36-0050626-02	Assembly, Flashtube 12.50 Leads with Grommet
13	68-2290005-34	Lens, Clear/Coated A612
14	19-170049-010	Retainer, A600 Lens Complete
15	14-0050508-27	Screw, 6-32 5/16 PFHMS CSNK MS51959-27
16	39-0501326-04	Socket, 20-14 AWG, .084 Comm Mate-N-Lok
17	39-0403811-04	Housing, 3 POS Socket Panel Moun

Features

Reference Chart

Mfg Model#	Description	Part No.
9034001	Position green, 14 VDC (FAA TSO-C96a / TSO-C30c Types II & III)	11-05625
9034002	Position red, 14 VDC (FAA TSO-C96a / TSO-C30c Types I & III)	11-05626
9034003	Position green, 28 VDC (FAA TSO-C96a / TSO-C30c Types II & III)	11-05627
9034004	Position red, 28 VDC (FAA TSO-C96a / TSO-C30c Types I & III)	11-05628

Арт.	MPN	Описание	Цена
11-05627	01-0790340-03	WHELEN 9034003 28V GRN WINGTIP	$ 612
11-05626	01-0790340-02	WHELEN 9034002 14V RED WINGTIP	$ 589
11-05625	01-0790340-01	WHELEN 90340 SERIES STROBE ANTI-COLLISION / LED POSITION LIGHT ASSEMBLY	$ 770
11-13903	19-170049-010	WHELEN 19-170049-010 LENS RETAINER	$ 119.75
11-05628	01-0790340-04	WHELEN 9034004 28V RED WINGTIP	$ 600
